k8s学习笔记

¶一、概念

¶1. 定义

k8s是Google开源的一个容器集群管理系统。

k8s用于容器化应用程序部署、扩展和管理。

k8s提供了容器编排，资源调度，自动修复，弹性伸缩（自动根据服务器的并发情况扩增或者缩减容器数量)，自动部署，回滚处理，服务发现，负载均衡等一些列功能。

k8s目标是让容器化应用简单高效。

官网：https://kubernetes.io

官方中文文档：https://kubernetes.io/zh/docs/home

¶2. 核心对象

Kubernetes 对象

Pod
- 最小可部署单元（k8s不能直接启动容器，而是需要通过Pod间接启动容器）
- 一组容器（docker）集合
- 一个Pod中的所有容器共享网络命名空间
- Pod是短暂的，运行完就结束了
Service 服务
- 将一组Pod（比如mysql Pod）关联起来，提供统一的入口
- 防止pod失联，Pod地址发生改变，入口不受影响
Volume 数据卷
- 类似于Docker的Volume
Namespace 命名空间
- 用于隔离Pod的运行环境（默认情况Pod可以互相访问）
- 使用场景：
  - ①为开发环境、测试环境、生产环境准备不同的命名空间
- ②为不同的用户提供不同的隔离的运行环境
Controller 控制器

Controller控制器基本对象构建并提供额外的功能和方便使用的特性，用于控制pod启动、停止、删除等。
- Deployment
- DaemonSet
- StatefulSet
- ReplicaSet
- Job

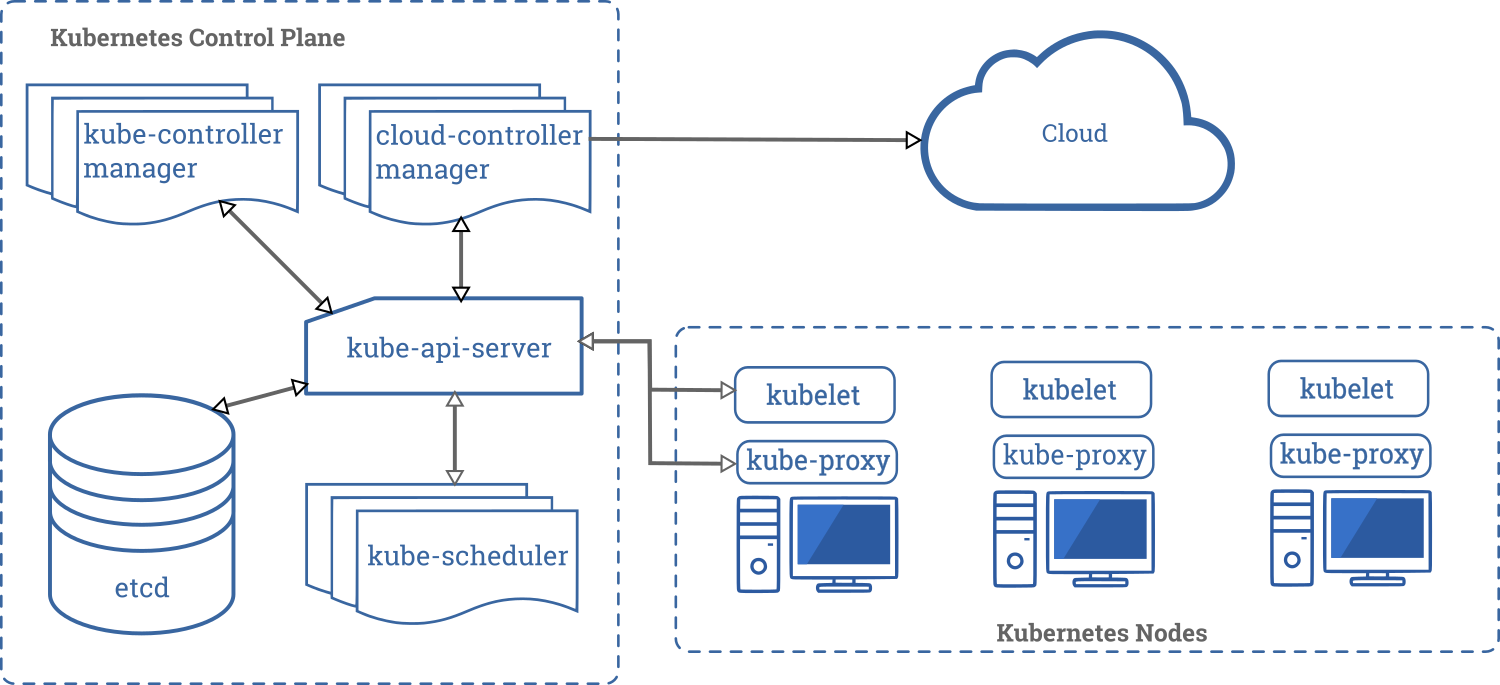

¶3. 节点分类

master node：主控节点
worker node：工作节点

（1）master node相关的组件（程序）

apiserver：接收客户端操作k8s的指令，此外也是其他组件互调的桥梁。

schduler：从多个worker node的pod中选举一个来启动服务。

controller manager：管理控制器的组件，用于向work node的kubelet发送指令。

etcd：分布式键值对数据库。用于保存集群状态数据，比如pod、service等对象信息。

（2）worker node相关的组件（程序）

kubelet：向docker发送指令从而管理容器并汇报节点状态给apiserver。

kubeproxy：管理docker容器的网络。

¶二、部署单master集群

¶1. 集群规划

主机名	ip	组件
k8s-master1	192.168.222.101	kube-apiserver、kube-controller-manager、kube-scheduler、etcd
k8s-worker1	192.168.222.201	kubelet、kube-proxy、docker、etcd
k8s-worker2	192.168.222.202	kubelet、kube-proxy、docker、etcd

¶2. 系统环境

操作系统：centos7

k8s版本：1.16.2

docker版本：18.09.9-3

安装方式：离线二进制安装

¶3. 初始化服务器

（1）关闭防火墙

1 2	$ systemctl stop firewalld $ systemctl disable firewalld

（2）关闭selinux

1 2	# 临时生效 $ setenforce 0

1
2
3

# 永久生效
$ vim /etc/selinux/config
SELINUX=disabled      #修改SELINUX的值为disabled

（3）关闭交换分区

1 2	# 临时生效 $ swapoff -a

# 永久生效
$ vim /etc/fstab
# 如下注释掉swap的配置
#/dev/mapper/centos-swap swap                    swap    defaults        0 0

1 2	#检测是否关闭成功 $ free -m

（4）配置主机名

1 2	#对三台机器分别修改主机名 $ hostnamectl set-hostname 主机名

k8s-master1

1	$ hostnamectl set-hostname k8s-master1

k8s-worker1

1	$ hostnamectl set-hostname k8s-worker1

k8s-worker2

1	$ hostnamectl set-hostname k8s-worker2

验证是否修改成功

1	$ hostname

（5）配置名称解析

三台主机都做如下配置

$ cat << EOF >> /etc/hosts
192.168.222.101 k8s-master1
192.168.222.201 k8s-worker1
192.168.222.202 k8s-worker2
EOF

然后互相ping查看是否都能通过主机名连接

1 2	$ ping 主机名 #如：ping k8s-master1

（6）配置时间同步

选择一个节点作为时间上游服务端，其他的节点作为时间下游客户端。比如这里选择k8s-master1为服务端。那么需要做如下配置：

① k8s-master1

1	$ yum install chrony -y

1	$ vim /etc/chrony.conf

#注释掉上游server相关的记录，并新加一条server记录
#server 0.centos.pool.ntp.org iburst
#server 1.centos.pool.ntp.org iburst
#server 2.centos.pool.ntp.org iburst
#server 3.centos.pool.ntp.org iburst
server 127.127.1.0 iburst
#允许客户端访问的网段
allow 192.168.222.0/24
local stratum 10

# 启动
$ systemctl start chronyd
# 开机启动
$ systemctl enable chronyd

1 2	# 查看启动情况 ss -unl \| grep 123

① k8s-worker1和k8s-worker2

1	$ yum install chrony -y

1	$ vim /etc/chrony.conf

1 2	#指定上游服务器为k8s-master1的ip server 192.168.222.101 iburst

# 启动
$ systemctl start chronyd
# 开机启动
$ systemctl enable chronyd

# 查看时间是否与上游服务器同步
$ chronyc sources

210 Number of sources = 1
MS Name/IP address         Stratum Poll Reach LastRx Last sample
===============================================================================
#出现^*说明同步
^* k8s-master1                  10   6   177    35    +48us[+4654us] +/-  169us

¶4. 部署etcd

为了节省服务器资源，这里把etcd分别部署到k8s-master1、k8s-worker1、k8s-worker2里。

¶4.1 生成证书

给etcd颁发证书，可以通过cfssl或者openssl工具生成自签证书。这里使用k8s推荐的cfssl。

（1）下载并安装cfssl

可以在k8s-master1上执行

$ wget https://pkg.cfssl.org/R1.2/cfssl_linux-amd64
$ wget https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64
$ wget https://pkg.cfssl.org/R1.2/cfssl-certinfo_linux-amd64
$ chmod +x cfssl_linux-amd64 cfssljson_linux-amd64 cfssl-certinfo_linux-amd64
$ mv cfssl_linux-amd64 /usr/local/bin/cfssl
$ mv cfssljson_linux-amd64 /usr/local/bin/cfssljson
$ mv cfssl-certinfo_linux-amd64 /usr/bin/cfssl-certinfo

（2）在/root/k8s目录下编写三个json文件

$ vim ca-config.json
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "www": {
         "expiry": "87600h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}


$ vim ca-csr.json
{
    "CN": "etcd CA",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Beijing",
            "ST": "Beijing"
        }
    ]
}

#下面的hosts为三台主机的ip，（如果需要办法给更多个服务器，那么将ip追加到下面的hosts即可）
$ vim server-csr.json
{
    "CN": "etcd",
    "hosts": [
    "192.168.222.101",
    "192.168.222.201",
    "192.168.222.202"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "BeiJing",
            "ST": "BeiJing"
        }
    ]
}

（3）生成证书命令

#创建ca机构（得到ca私钥ca-key.pem和ca公钥ca.pem，用于给ca机构自身，申请者需要携带公钥来申请服务颁发证书）
$ cfssl gencert -initca ca-csr.json | cfssljson -bare ca -

#生成要颁发的证书（得到服务私钥server-key.pem和服务公钥server.pem，用于给其他服务器）
$ cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=www server-csr.json | cfssljson -bare server

$ ls *pem（应该有4个pem结尾的文件）
$ ca-key.pem  ca.pem  server-key.pem  server.pem

¶4.2 安装etcd

二进制包下载地址：https://github.com/coreos/etcd/releases/

有etcd的node上都要部署，注意文件夹的名字和位置，不是随便命名和放置的。

（1）在三台服务器上都执行如下命令进行安装

#安装etcd
$ mkdir /opt/etcd/{bin,cfg,ssl} -p
$ wget https://github.com/etcd-io/etcd/releases/download/v3.2.12/etcd-v3.2.12-linux-amd64.tar.gz
$ tar -zxvf etcd-v3.2.12-linux-amd64.tar.gz -C ./
$ mv etcd-v3.2.12-linux-amd64/{etcd,etcdctl} /opt/etcd/bin/

（2）三台服务器上分别创建etcd配置文件

k8s-master1

$ touch /opt/etcd/cfg/etcd.conf && chmod 777 /opt/etcd/cfg/etcd.conf
$ vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-1"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.222.101:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.222.101:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.222.101:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.222.101:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.222.101:2380,etcd-2=https://192.168.222.201:2380,etcd-3=https://192.168.222.202:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

#-------------------------------------解释-------------------------------------------
#ETCD_NAME 节点名称
#ETCD_DATA_DIR 数据目录
#ETCD_LISTEN_PEER_URLS 集群通信监听地址
#ETCD_LISTEN_CLIENT_URLS 客户端访问监听地址
#ETCD_INITIAL_ADVERTISE_PEER_URLS 集群通告地址
#ETCD_ADVERTISE_CLIENT_URLS 客户端通告地址
#ETCD_INITIAL_CLUSTER 集群节点地址
#ETCD_INITIAL_CLUSTER_TOKEN 集群Token
#ETCD_INITIAL_CLUSTER_STATE 加入集群的当前状态，new是新集群，existing表示加入已有集群

k8s-worker1

$ touch /opt/etcd/cfg/etcd.conf && chmod 777 /opt/etcd/cfg/etcd.conf
$ vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-2"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.222.201:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.222.201:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.222.201:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.222.201:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.222.101:2380,etcd-2=https://192.168.222.201:2380,etcd-3=https://192.168.222.202:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

#-------------------------------------解释-------------------------------------------
#ETCD_NAME 节点名称
#ETCD_DATA_DIR 数据目录
#ETCD_LISTEN_PEER_URLS 集群通信监听地址
#ETCD_LISTEN_CLIENT_URLS 客户端访问监听地址
#ETCD_INITIAL_ADVERTISE_PEER_URLS 集群通告地址
#ETCD_ADVERTISE_CLIENT_URLS 客户端通告地址
#ETCD_INITIAL_CLUSTER 集群节点地址
#ETCD_INITIAL_CLUSTER_TOKEN 集群Token
#ETCD_INITIAL_CLUSTER_STATE 加入集群的当前状态，new是新集群，existing表示加入已有集群

k8s-worker2

$ touch /opt/etcd/cfg/etcd.conf && chmod 777 /opt/etcd/cfg/etcd.conf
$ vim /opt/etcd/cfg/etcd.conf
#[Member]
ETCD_NAME="etcd-3"
ETCD_DATA_DIR="/var/lib/etcd/default.etcd"
ETCD_LISTEN_PEER_URLS="https://192.168.222.202:2380"
ETCD_LISTEN_CLIENT_URLS="https://192.168.222.202:2379"

#[Clustering]
ETCD_INITIAL_ADVERTISE_PEER_URLS="https://192.168.222.202:2380"
ETCD_ADVERTISE_CLIENT_URLS="https://192.168.222.202:2379"
ETCD_INITIAL_CLUSTER="etcd-1=https://192.168.222.101:2380,etcd-2=https://192.168.222.201:2380,etcd-3=https://192.168.222.202:2380"
ETCD_INITIAL_CLUSTER_TOKEN="etcd-cluster"
ETCD_INITIAL_CLUSTER_STATE="new"

#-------------------------------------解释-------------------------------------------
#ETCD_NAME 节点名称
#ETCD_DATA_DIR 数据目录
#ETCD_LISTEN_PEER_URLS 集群通信监听地址
#ETCD_LISTEN_CLIENT_URLS 客户端访问监听地址
#ETCD_INITIAL_ADVERTISE_PEER_URLS 集群通告地址
#ETCD_ADVERTISE_CLIENT_URLS 客户端通告地址
#ETCD_INITIAL_CLUSTER 集群节点地址
#ETCD_INITIAL_CLUSTER_TOKEN 集群Token
#ETCD_INITIAL_CLUSTER_STATE 加入集群的当前状态，new是新集群，existing表示加入已有集群

（3）三台服务器上分别创建systemd管理etcd的配置文件

$ vim /usr/lib/systemd/system/etcd.service
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target

[Service]
Type=notify
EnvironmentFile=/opt/etcd/cfg/etcd.conf
ExecStart=/opt/etcd/bin/etcd \
--name=${ETCD_NAME} \
--data-dir=${ETCD_DATA_DIR} \
--listen-peer-urls=${ETCD_LISTEN_PEER_URLS} \
--listen-client-urls=${ETCD_LISTEN_CLIENT_URLS},http://127.0.0.1:2379 \
--advertise-client-urls=${ETCD_ADVERTISE_CLIENT_URLS} \
--initial-advertise-peer-urls=${ETCD_INITIAL_ADVERTISE_PEER_URLS} \
--initial-cluster=${ETCD_INITIAL_CLUSTER} \
--initial-cluster-token=${ETCD_INITIAL_CLUSTER_TOKEN} \
--initial-cluster-state=new \
--cert-file=/opt/etcd/ssl/server.pem \
--key-file=/opt/etcd/ssl/server-key.pem \
--peer-cert-file=/opt/etcd/ssl/server.pem \
--peer-key-file=/opt/etcd/ssl/server-key.pem \
--trusted-ca-file=/opt/etcd/ssl/ca.pem \
--peer-trusted-ca-file=/opt/etcd/ssl/ca.pem
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

（4）在k8s-master1主机里将之前生成的证书分别拷贝到各个节点的/opt/etcd/ssl目录里。

$ cd ~/k8s/
$ cp ca*pem server*pem /opt/etcd/ssl
$ scp ca*pem server*pem root@k8s-worker1:/opt/etcd/ssl
$ scp ca*pem server*pem root@k8s-worker2:/opt/etcd/ssl

（5）三台服务器上分别都启动etcd并设置开机启动

1 2	$ systemctl start etcd $ systemctl enable etcd

（6）在都部署完成后，在任意节点执行如下命令检查一下集群的状态(若是出现cluster is healthy，说明部署成功！)

$ /opt/etcd/bin/etcdctl --ca-file=/opt/etcd/ssl/ca.pem --cert-file=/opt/etcd/ssl/server.pem --key-file=/opt/etcd/ssl/server-key.pem --endpoints="https://192.168.222.101:2379,https://192.168.222.201:2379,https://192.168.222.202:2379" cluster-health

#出现如下信息证明部署成功
member 239636ea954e7897 is healthy: got healthy result from https://192.168.222.101:2379
member 301bdd98b166b85c is healthy: got healthy result from https://192.168.222.202:2379
member b94d930437eda878 is healthy: got healthy result from https://192.168.222.201:2379
cluster is healthy

¶5. 部署master组件

需要部署的组件有：kube-apiserver、kube-controller-manager、kube-scheduler。

¶5.1 生成证书

在k8s-master1上执行命令：

#初始化安装目录
$ mkdir /opt/kubernetes/{bin,cfg,ssl,logs} -p
#备份原理生成的证书
$ mv ~/k8s/ ~/k8s-etcd-backup
$ mkdir ~/k8s
$ cd k8s

#创建ca机构并生成ca证书
$ vim ca-config.json
{
  "signing": {
    "default": {
      "expiry": "87600h"
    },
    "profiles": {
      "kubernetes": {
         "expiry": "87600h",
         "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ]
      }
    }
  }
}

$ vim ca-csr.json
{
    "CN": "kubernetes",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "Beijing",
            "ST": "Beijing",
            "O": "k8s",
            "OU": "System"
        }
    ]
}

$ cfssl gencert -initca ca-csr.json | cfssljson -bare ca -

# 生成apiserver证书
$ vim server-csr.json
{
    "CN": "kubernetes",
    "hosts": [
      "10.0.0.1",
      "127.0.0.1",
      "192.168.222.101",
      "kubernetes",
      "kubernetes.default",
      "kubernetes.default.svc",
      "kubernetes.default.svc.cluster",
      "kubernetes.default.svc.cluster.local"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
        {
            "C": "CN",
            "L": "BeiJing",
            "ST": "BeiJing",
            "O": "k8s",
            "OU": "System"
        }
    ]
}

$ cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes server-csr.json | cfssljson -bare server

# 生成kube-proxy证书
$ vim kube-proxy-csr.json
{
  "CN": "system:kube-proxy",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "L": "BeiJing",
      "ST": "BeiJing",
      "O": "k8s",
      "OU": "System"
    }
  ]
}

$ cfssl gencert -ca=ca.pem -ca-key=ca-key.pem -config=ca-config.json -profile=kubernetes kube-proxy-csr.json | cfssljson -bare kube-proxy

最终得到ca-key.pem、ca.pem、kube-proxy-key.pem、kube-proxy.pem、server-key.pem、server.pem 6个以pem结尾的文件，则成功。

1	$ cp capem serverpem /opt/kubernetes/ssl

¶5.2 下载并安装kubernetes

$ cd ~/k8s
# 下载k8s二进制包（请通过科学上网或者其他方式下载）
$ wget https://storage.googleapis.com/kubernetes-release/release/v1.16.2/kubernetes-server-linux-amd64.tar.gz
$ tar zxvf kubernetes-server-linux-amd64.tar.gz
$ cd kubernetes/server/bin
$ cp kube-apiserver kube-scheduler kube-controller-manager kubectl /opt/kubernetes/bin

¶5.3 部署kube-apiserver

（1）创建token文件

1 2	$ vim /opt/kubernetes/cfg/token.csv c47ffb939f5ca36231d9e3121a252940,kubelet-bootstrap,10001,"system:node-bootstrapper"

第一列：随机字符串，自己可生成
第二列：用户名
第三列：UID
第四列：用户组

（2）创建组件的配置文件

$ vim /opt/kubernetes/cfg/kube-apiserver.conf
KUBE_APISERVER_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--etcd-servers=https://192.168.222.101:2379,https://192.168.222.201:2379,https://192.168.222.202:2379 \
--bind-address=192.168.222.101 \
--secure-port=6443 \
--advertise-address=192.168.222.101 \
--allow-privileged=true \
--service-cluster-ip-range=10.0.0.0/24 \
--enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,ResourceQuota,NodeRestriction \
--authorization-mode=RBAC,Node \
--enable-bootstrap-token-auth=true \
--token-auth-file=/opt/kubernetes/cfg/token.csv \
--service-node-port-range=30000-32767 \
--kubelet-client-certificate=/opt/kubernetes/ssl/server.pem \
--kubelet-client-key=/opt/kubernetes/ssl/server-key.pem \
--tls-cert-file=/opt/kubernetes/ssl/server.pem  \
--tls-private-key-file=/opt/kubernetes/ssl/server-key.pem \
--client-ca-file=/opt/kubernetes/ssl/ca.pem \
--service-account-key-file=/opt/kubernetes/ssl/ca-key.pem \
--etcd-cafile=/opt/etcd/ssl/ca.pem \
--etcd-certfile=/opt/etcd/ssl/server.pem \
--etcd-keyfile=/opt/etcd/ssl/server-key.pem \
--audit-log-maxage=30 \
--audit-log-maxbackup=3 \
--audit-log-maxsize=100 \
--audit-log-path=/opt/kubernetes/logs/k8s-audit.log"

参数说明：
logtostderr 启用日志
v 日志等级
etcd-servers etcd集群地址
bind-address 监听地址
secure-port https安全端口
advertise-address 集群通告地址
allow-privileged 启用授权
service-cluster-ip-range Service虚拟IP地址段
enable-admission-plugins 准入控制模块
authorization-mode 认证授权，启用RBAC授权和节点自管理
enable-bootstrap-token-auth 启用TLS bootstrap功能，后面会讲到
token-auth-file token文件
service-node-port-range Service Node类型默认分配端口范围

（3）创建systemd管理组件的配置文件

$ vim /usr/lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-apiserver.conf
ExecStart=/opt/kubernetes/bin/kube-apiserver $KUBE_APISERVER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target

（4）启动

1
2
3

$ systemctl daemon-reload
$ systemctl enable kube-apiserver
$ systemctl restart kube-apiserver

¶5.4 部署kube-scheduler

（1）创建组件的配置文件

$ vim /opt/kubernetes/cfg/kube-scheduler.conf
KUBE_SCHEDULER_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--leader-elect \
--master=127.0.0.1:8080 \
--address=127.0.0.1"

参数说明：
master 连接本地apiserver
leader-elect 当该组件启动多个时，自动选举（HA）
address服务监听的地址

（2）systemd管理组件的配置文件

$ vim /usr/lib/systemd/system/kube-scheduler.service
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-scheduler.conf
ExecStart=/opt/kubernetes/bin/kube-scheduler $KUBE_SCHEDULER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target

（3）启动

1
2
3

$ systemctl daemon-reload
$ systemctl enable kube-scheduler
$ systemctl restart kube-scheduler

¶5.5 部署kube-controller-manager

（1）创建组件的配置文件

$ vim /opt/kubernetes/cfg/kube-controller-manager.conf
KUBE_CONTROLLER_MANAGER_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--leader-elect=true \
--master=127.0.0.1:8080 \
--address=127.0.0.1 \
--allocate-node-cidrs=true \
--cluster-cidr=10.244.0.0/16 \
--service-cluster-ip-range=10.0.0.0/24 \
--cluster-signing-cert-file=/opt/kubernetes/ssl/ca.pem \
--cluster-signing-key-file=/opt/kubernetes/ssl/ca-key.pem  \
--root-ca-file=/opt/kubernetes/ssl/ca.pem \
--service-account-private-key-file=/opt/kubernetes/ssl/ca-key.pem \
--experimental-cluster-signing-duration=87600h0m0s"

参数说明：
master 连接本地apiserver的ip地址
address kube-controller-manager监听的地址
allocate 是否支持CNI网络插件
cluster-cidr CNI网段
service-cluster-ip-range 给客户端分配的ip网络范围
leader-elect 当该组件启动多个时，自动选举（HA）

（2）systemd管理组件的配置文件

$ vim /usr/lib/systemd/system/kube-controller-manager.service
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-controller-manager.conf
ExecStart=/opt/kubernetes/bin/kube-controller-manager $KUBE_CONTROLLER_MANAGER_OPTS
Restart=on-failure

[Install]
WantedBy=multi-user.target

（3）启动

1
2
3

$ systemctl daemon-reload
$ systemctl enable kube-controller-manager
$ systemctl restart kube-controller-manager

¶5.6 查看集群组件状态

可以通过kubectl工具查看当前集群组件状态。

$ cp /opt/kubernetes/bin/kubectl /bin/
$ kubectl get cs
#会出现如下信息
NAME                 AGE
scheduler            <unknown>
controller-manager   <unknown>
etcd-2               <unknown>
etcd-0               <unknown>
etcd-1               <unknown>

¶5.7 启用tls基于bootstrap自动颁发证书

1
2
3

$ kubectl create clusterrolebinding kubelet-bootstrap \
  --clusterrole=system:node-bootstrapper \
  --user=kubelet-bootstrap

¶6. 部署worker组件

需要部署的组件有：docker、kubelet、kube-proxy。

¶6.1 安装docker

由于官方下载速度比较慢，所以需要更改 Docker 安装的 yum 源，这里推荐用阿里镜像源：

1 2	$ yum install yum-utils -y $ yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

显示 docker 所有可安装版本：

1	$ yum list docker-ce --showduplicates \| sort -r

安装指定版本 docker

注意：安装前一定要提前查询将要安装的 Kubernetes 版本是否和 Docker 版本对应。

1	$ yum install -y docker-ce-18.09.9-3.el7

启动并加入开机启动

1 2	$ sudo systemctl start docker $ sudo systemctl enable docker

镜像下载加速

1	$ vim /etc/docker/daemon.json

添加以下内容：

{
  "registry-mirrors": [
    "https://dockerhub.azk8s.cn",
    "https://hub-mirror.c.163.com"
  ]
}

可以配置多个加速镜像。由于镜像服务可能出现宕机，建议同时配置多个加速镜像。

#重新加载配制
$ systemctl daemon-reload
#重启docker
$ service docker restart
#检查加速器是否生效
$ docker info

¶6.2 部署kubelet和kube-proxy组件

（1）安装kubelet和kube-proxy组件

$ mkdir ~/k8s && cd ~/k8s
# 下载k8s二进制包（请通过科学上网或者其他方式下载）
$ wget https://storage.googleapis.com/kubernetes-release/release/v1.16.2/kubernetes-server-linux-amd64.tar.gz
$ tar zxvf kubernetes-server-linux-amd64.tar.gz

#初始化安装目录
$ mkdir /opt/kubernetes/{bin,cfg,ssl,logs} -p

#找到kubelet和kube-proxy两个文件，将这两个文件拷贝到Node节点的/opt/kubernetes/bin目录下
cp ~/k8s/kubernetes/server/bin/kubelet /opt/kubernetes/bin/
cp ~/k8s/kubernetes/server/bin/kube-proxy /opt/kubernetes/bin/

（2）从master节点复制证书到k8s-worker1和k8s-worker2节点

1
2
3

$ cd ~/k8s
$ scp ca.pem kube-proxy.pem kube-proxy-key.pem root@k8s-worker1:/opt/kubernetes/ssl/
$ scp ca.pem kube-proxy.pem kube-proxy-key.pem root@k8s-worker2:/opt/kubernetes/ssl/

（2）在k8s-worker1和k8s-worker2都创建如下kube-proxy.kubeconfig文件

1	$ vim /opt/kubernetes/cfg/kube-proxy.kubeconfig

apiVersion: v1
clusters:
- cluster:
    certificate-authority: /opt/kubernetes/ssl/ca.pem
    server: https://192.168.222.101:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: kube-proxy
  name: default
current-context: default
kind: Config
preferences: {}
users:
- name: kube-proxy
  user:
    client-certificate: /opt/kubernetes/ssl/kube-proxy.pem
    client-key: /opt/kubernetes/ssl/kube-proxy-key.pem

server 指定matser的ip

（3）在k8s-worker1和k8s-worker2都创建如下kube-proxy.kubeconfig文件，注意hostnameOverride要指定为当前主机的主机名。

1	$ vim /opt/kubernetes/cfg/kube-proxy-config.yml

kind: KubeProxyConfiguration
apiVersion: kubeproxy.config.k8s.io/v1alpha1
address: 0.0.0.0
metricsBindAddress: 0.0.0.0:10249
clientConnection:
  kubeconfig: /opt/kubernetes/cfg/kube-proxy.kubeconfig
hostnameOverride: k8s-worker1
clusterCIDR: 10.0.0.0/24
mode: ipvs
ipvs:
  scheduler: "rr"
iptables:
  masqueradeAll: true

hostnameOverride 指定当前主机的主机名

（4）在k8s-worker1和k8s-worker2都创建如下kube-proxy.conf文件。

1	$ vim /opt/kubernetes/cfg/kube-proxy.conf

KUBE_PROXY_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--config=/opt/kubernetes/cfg/kube-proxy-config.yml"

（5）在k8s-worker1和k8s-worker2都创建如下kubelet-config.yml文件。

1	$ vim /opt/kubernetes/cfg/kubelet-config.yml

kind: KubeletConfiguration
apiVersion: kubelet.config.k8s.io/v1beta1
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
cgroupDriver: cgroupfs
clusterDNS:
- 10.0.0.2
clusterDomain: cluster.local
failSwapOn: false
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /opt/kubernetes/ssl/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
maxOpenFiles: 1000000
maxPods: 110

（6）在k8s-worker1和k8s-worker2都创建如下kubelet.conf文件，注意hostname-override要指定为当前主机的主机名。

1	$ vim /opt/kubernetes/cfg/kubelet.conf

KUBELET_OPTS="--logtostderr=false \
--v=2 \
--log-dir=/opt/kubernetes/logs \
--hostname-override=k8s-worker1 \
--network-plugin=cni \
--kubeconfig=/opt/kubernetes/cfg/kubelet.kubeconfig \
--bootstrap-kubeconfig=/opt/kubernetes/cfg/bootstrap.kubeconfig \
--config=/opt/kubernetes/cfg/kubelet-config.yml \
--cert-dir=/opt/kubernetes/ssl \
--pod-infra-container-image=lizhenliang/pause-amd64:3.0"

hostname-override 指定当前主机的主机名

（7）在k8s-worker1和k8s-worker2都创建如下bootstrap.kubeconfig文件。

1	$ vim /opt/kubernetes/cfg/bootstrap.kubeconfig

apiVersion: v1
clusters:
- cluster:
    certificate-authority: /opt/kubernetes/ssl/ca.pem
    server: https://192.168.222.101:6443
  name: kubernetes
contexts:
- context:
    cluster: kubernetes
    user: kubelet-bootstrap
  name: default
current-context: default
kind: Config
preferences: {}
users:
- name: kubelet-bootstrap
  user:
    token: c47ffb939f5ca36231d9e3121a252940

server 指定matser的ip

（8）在k8s-worker1和k8s-worker2都配置如下系统启动服务配置文件。

1	$ vim /usr/lib/systemd/system/kube-proxy.service

[Unit]
Description=Kubernetes Proxy
After=network.target

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kube-proxy.conf
ExecStart=/opt/kubernetes/bin/kube-proxy $KUBE_PROXY_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

1	$ vim /usr/lib/systemd/system/kubelet.service

[Unit]
Description=Kubernetes Kubelet
After=docker.service
Before=docker.service

[Service]
EnvironmentFile=/opt/kubernetes/cfg/kubelet.conf
ExecStart=/opt/kubernetes/bin/kubelet $KUBELET_OPTS
Restart=on-failure
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target

（9）k8s-worker1和k8s-worker2都启动kubelet和kube-proxy服务

$ systemctl start kube-proxy
$ systemctl enable kube-proxy
$ systemctl start kubelet
$ systemctl enable kubelet

（10）在master节点为worker节点颁发证书

#查看worker的证书请求
$ kubectl get csr
#会显示如下信息
NAME                                                   AGE   REQUESTOR           CONDITION
node-csr-7Pxr6JrmsSHXx-P5sfhCwFVDZkXxC6iLx7Y3xHD9xlc   12m   kubelet-bootstrap   Pending
node-csr-KvP7Ebs95r4ROlf1jXmVxq-mb2xcS_DrKbAMbXUWu-k   12m   kubelet-bootstrap   Pending
node-csr-sygVc7ahN8Y-8Td_2ipEEmKgWgyJdrIKDTOMtOagRaU   26m   kubelet-bootstrap   Pending

#对worker请求token进行证书颁发操作
$ kubectl certificate approve node-csr-7Pxr6JrmsSHXx-P5sfhCwFVDZkXxC6iLx7Y3xHD9xlc
$ kubectl certificate approve node-csr-KvP7Ebs95r4ROlf1jXmVxq-mb2xcS_DrKbAMbXUWu-k
$ kubectl certificate approve node-csr-sygVc7ahN8Y-8Td_2ipEEmKgWgyJdrIKDTOMtOagRaU

#查看已经认证的worker节点信息
$ kubectl get node
#会显示如下信息
NAME          STATUS     ROLES    AGE   VERSION
k8s-worker1   NotReady   <none>   31s   v1.16.2
k8s-worker2   NotReady   <none>   22s   v1.16.2

¶6.3 安装网络插件

（1）在所有worker节点上安装cni网络插件

1
2
3

$ mkdir -pv /opt/cni/bin /etc/cni/net.d
$ wget https://github.com/containernetworking/plugins/releases/download/v0.8.2/cni-plugins-linux-amd64-v0.8.2.tgz
$ tar xf cni-plugins-linux-amd64-v0.8.2.tgz -C /opt/cni/bin

（2）在master上执行yaml脚本，实现在worker节点安装启动网络插件功能

1	$ vi ~/k8s/kube-flannel.yaml

---
apiVersion: policy/v1beta1
kind: PodSecurityPolicy
metadata:
  name: psp.flannel.unprivileged
  annotations:
    seccomp.security.alpha.kubernetes.io/allowedProfileNames: docker/default
    seccomp.security.alpha.kubernetes.io/defaultProfileName: docker/default
    apparmor.security.beta.kubernetes.io/allowedProfileNames: runtime/default
    apparmor.security.beta.kubernetes.io/defaultProfileName: runtime/default
spec:
  privileged: false
  volumes:
    - configMap
    - secret
    - emptyDir
    - hostPath
  allowedHostPaths:
    - pathPrefix: "/etc/cni/net.d"
    - pathPrefix: "/etc/kube-flannel"
    - pathPrefix: "/run/flannel"
  readOnlyRootFilesystem: false
  # Users and groups
  runAsUser:
    rule: RunAsAny
  supplementalGroups:
    rule: RunAsAny
  fsGroup:
    rule: RunAsAny
  # Privilege Escalation
  allowPrivilegeEscalation: false
  defaultAllowPrivilegeEscalation: false
  # Capabilities
  allowedCapabilities: ['NET_ADMIN']
  defaultAddCapabilities: []
  requiredDropCapabilities: []
  # Host namespaces
  hostPID: false
  hostIPC: false
  hostNetwork: true
  hostPorts:
  - min: 0
    max: 65535
  # SELinux
  seLinux:
    # SELinux is unsed in CaaSP
    rule: 'RunAsAny'
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: flannel
rules:
  - apiGroups: ['extensions']
    resources: ['podsecuritypolicies']
    verbs: ['use']
    resourceNames: ['psp.flannel.unprivileged']
  - apiGroups:
      - ""
    resources:
      - pods
    verbs:
      - get
  - apiGroups:
      - ""
    resources:
      - nodes
    verbs:
      - list
      - watch
  - apiGroups:
      - ""
    resources:
      - nodes/status
    verbs:
      - patch
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1beta1
metadata:
  name: flannel
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: flannel
subjects:
- kind: ServiceAccount
  name: flannel
  namespace: kube-system
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: flannel
  namespace: kube-system
---
kind: ConfigMap
apiVersion: v1
metadata:
  name: kube-flannel-cfg
  namespace: kube-system
  labels:
    tier: node
    app: flannel
data:
  cni-conf.json: |
    {
      "cniVersion": "0.2.0",
      "name": "cbr0",
      "plugins": [
        {
          "type": "flannel",
          "delegate": {
            "hairpinMode": true,
            "isDefaultGateway": true
          }
        },
        {
          "type": "portmap",
          "capabilities": {
            "portMappings": true
          }
        }
      ]
    }
  net-conf.json: |
    {
      "Network": "10.244.0.0/16",
      "Backend": {
        "Type": "vxlan"
      }
    }
---
apiVersion: apps/v1
kind: DaemonSet
metadata:
  name: kube-flannel-ds-amd64
  namespace: kube-system
  labels:
    tier: node
    app: flannel
spec:
  selector:
    matchLabels:
      app: flannel
  template:
    metadata:
      labels:
        tier: node
        app: flannel
    spec:
      affinity:
        nodeAffinity:
          requiredDuringSchedulingIgnoredDuringExecution:
            nodeSelectorTerms:
              - matchExpressions:
                  - key: beta.kubernetes.io/os
                    operator: In
                    values:
                      - linux
                  - key: beta.kubernetes.io/arch
                    operator: In
                    values:
                      - amd64
      hostNetwork: true
      tolerations:
      - operator: Exists
        effect: NoSchedule
      serviceAccountName: flannel
      initContainers:
      - name: install-cni
        image: lizhenliang/flannel:v0.11.0-amd64
        command:
        - cp
        args:
        - -f
        - /etc/kube-flannel/cni-conf.json
        - /etc/cni/net.d/10-flannel.conflist
        volumeMounts:
        - name: cni
          mountPath: /etc/cni/net.d
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      containers:
      - name: kube-flannel
        image: lizhenliang/flannel:v0.11.0-amd64
        command:
        - /opt/bin/flanneld
        args:
        - --ip-masq
        - --kube-subnet-mgr
        resources:
          requests:
            cpu: "100m"
            memory: "50Mi"
          limits:
            cpu: "100m"
            memory: "50Mi"
        securityContext:
          privileged: false
          capabilities:
             add: ["NET_ADMIN"]
        env:
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        volumeMounts:
        - name: run
          mountPath: /run/flannel
        - name: flannel-cfg
          mountPath: /etc/kube-flannel/
      volumes:
        - name: run
          hostPath:
            path: /run/flannel
        - name: cni
          hostPath:
            path: /etc/cni/net.d
        - name: flannel-cfg
          configMap:
            name: kube-flannel-cfg

下载flannel镜像并启动容器和完成网络连接

1	$ kubectl apply -f ~/k8s/kube-flannel.yaml

注意：这个操作受限于网络，可能会需要5~10分钟才能执行成功，如果网上太慢，会导致超时。

查看worker节点的状态

#查看worker节点的状态（n指命名空间）
$ kubectl get pods -n kube-system
#出现如下信息，待STATUS变成Running就表示启动网络插件成功了
NAME                          READY   STATUS                  RESTARTS   AGE
kube-flannel-ds-amd64-kcqvj   0/1     Init:ImagePullBackOff   0          7m23s
kube-flannel-ds-amd64-xmmp9   0/1     Init:ImagePullBackOff   0          7m22s

$ kubectl get node
NAME          STATUS   ROLES    AGE   VERSION
k8s-worker1   Ready    <none>   97m   v1.16.2
k8s-worker2   Ready    <none>   97m   v1.16.2

#查看worker节点信息(可以用于查看故障等信息)
$ kubectl describe node k8s-worker1

（3）授权apiserver可以访问kubelet

1	$ vi ~/k8s/apiserver-to-kubelet-rbac.yaml

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:kube-apiserver-to-kubelet
rules:
  - apiGroups:
      - ""
    resources:
      - nodes/proxy
      - nodes/stats
      - nodes/log
      - nodes/spec
      - nodes/metrics
      - pods/log
    verbs:
      - "*"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:kube-apiserver
  namespace: ""
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:kube-apiserver-to-kubelet
subjects:
  - apiGroup: rbac.authorization.k8s.io
    kind: User
    name: kubernetes

1	$ kubectl apply -f ~/k8s/apiserver-to-kubelet-rbac.yaml

¶7. 通过k8s启动nginx容器

在master节点上执行操作：

#创建deployment，通过deployment来创建和管理nginx容器
#k8s会随机选择worker节点进行镜像下载和启动，其中下面的myweb是docker容器名称，可以自定义名称，而image则是指定要使用的docker镜像版本
$ kubectl create deployment myweb --image=nginx:1.8

#查看一下deployment的状态
$ kubectl get deployment

#查看pode的状态
$ kubectl get pods

#暴露myweb容器的端口给宿主机
$ kubectl expose deployment myweb --port=80 --type=NodePort

#查看当前将80映射到了哪个端口
$ kubectl get svc

#比如通过上面的命令查到的宿主机端口是31320，那么访问集群任意worker节点的30828端口都能访问nginx
$ curl http://192.168.222.201:31320
$ curl http://192.168.222.202:31320

¶8. 配置web界面

¶8.1 官方dashboard

在matser上执行下面操作安装dashboard

1	$ vi ~/k8s/dashboard.yaml

# Copyright 2017 The Kubernetes Authors.
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#     http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

apiVersion: v1
kind: Namespace
metadata:
  name: kubernetes-dashboard

---

apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  type: NodePort
  ports:
    - port: 443
      targetPort: 8443
      nodePort: 30001
  selector:
    k8s-app: kubernetes-dashboard

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-certs
  namespace: kubernetes-dashboard
type: Opaque

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-csrf
  namespace: kubernetes-dashboard
type: Opaque
data:
  csrf: ""

---

apiVersion: v1
kind: Secret
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-key-holder
  namespace: kubernetes-dashboard
type: Opaque

---

kind: ConfigMap
apiVersion: v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard-settings
  namespace: kubernetes-dashboard

---

kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
rules:
  # Allow Dashboard to get, update and delete Dashboard exclusive secrets.
  - apiGroups: [""]
    resources: ["secrets"]
    resourceNames: ["kubernetes-dashboard-key-holder", "kubernetes-dashboard-certs", "kubernetes-dashboard-csrf"]
    verbs: ["get", "update", "delete"]
    # Allow Dashboard to get and update 'kubernetes-dashboard-settings' config map.
  - apiGroups: [""]
    resources: ["configmaps"]
    resourceNames: ["kubernetes-dashboard-settings"]
    verbs: ["get", "update"]
    # Allow Dashboard to get metrics.
  - apiGroups: [""]
    resources: ["services"]
    resourceNames: ["heapster", "dashboard-metrics-scraper"]
    verbs: ["proxy"]
  - apiGroups: [""]
    resources: ["services/proxy"]
    resourceNames: ["heapster", "http:heapster:", "https:heapster:", "dashboard-metrics-scraper", "http:dashboard-metrics-scraper"]
    verbs: ["get"]

---

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
rules:
  # Allow Metrics Scraper to get metrics from the Metrics server
  - apiGroups: ["metrics.k8s.io"]
    resources: ["pods", "nodes"]
    verbs: ["get", "list", "watch"]

---

apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kubernetes-dashboard
subjects:
  - kind: ServiceAccount
    name: kubernetes-dashboard
    namespace: kubernetes-dashboard

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: kubernetes-dashboard
  name: kubernetes-dashboard
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: kubernetes-dashboard
  template:
    metadata:
      labels:
        k8s-app: kubernetes-dashboard
    spec:
      containers:
        - name: kubernetes-dashboard
          image: kubernetesui/dashboard:v2.0.0-beta4
          imagePullPolicy: Always
          ports:
            - containerPort: 8443
              protocol: TCP
          args:
            - --auto-generate-certificates
            - --namespace=kubernetes-dashboard
            # Uncomment the following line to manually specify Kubernetes API server Host
            # If not specified, Dashboard will attempt to auto discover the API server and connect
            # to it. Uncomment only if the default does not work.
            # - --apiserver-host=http://my-address:port
          volumeMounts:
            - name: kubernetes-dashboard-certs
              mountPath: /certs
              # Create on-disk volume to store exec logs
            - mountPath: /tmp
              name: tmp-volume
          livenessProbe:
            httpGet:
              scheme: HTTPS
              path: /
              port: 8443
            initialDelaySeconds: 30
            timeoutSeconds: 30
      volumes:
        - name: kubernetes-dashboard-certs
          secret:
            secretName: kubernetes-dashboard-certs
        - name: tmp-volume
          emptyDir: {}
      serviceAccountName: kubernetes-dashboard
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule

---

kind: Service
apiVersion: v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  ports:
    - port: 8000
      targetPort: 8000
  selector:
    k8s-app: dashboard-metrics-scraper

---

kind: Deployment
apiVersion: apps/v1
metadata:
  labels:
    k8s-app: dashboard-metrics-scraper
  name: dashboard-metrics-scraper
  namespace: kubernetes-dashboard
spec:
  replicas: 1
  revisionHistoryLimit: 10
  selector:
    matchLabels:
      k8s-app: dashboard-metrics-scraper
  template:
    metadata:
      labels:
        k8s-app: dashboard-metrics-scraper
    spec:
      containers:
        - name: dashboard-metrics-scraper
          image: kubernetesui/metrics-scraper:v1.0.1
          ports:
            - containerPort: 8000
              protocol: TCP
          livenessProbe:
            httpGet:
              scheme: HTTP
              path: /
              port: 8000
            initialDelaySeconds: 30
            timeoutSeconds: 30
          volumeMounts:
          - mountPath: /tmp
            name: tmp-volume
      serviceAccountName: kubernetes-dashboard
      # Comment the following tolerations if Dashboard must not be deployed on master
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
      volumes:
        - name: tmp-volume
          emptyDir: {}

$ kubectl apply -f ~/k8s/dashboard.yaml
$ kubectl get pods -n kubernetes-dashboard

#比如通过上面的命令查到的宿主机端口是30001，那么浏览器访问https://192.168.222.202:30001
$ kubectl get svc -n kubernetes-dashboard

¶8.2 第三方dashboard

在matser上执行下面操作。

1	$ vi ~/k8s/start_kuboard.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: kuboard
  namespace: kube-system
  annotations:
    k8s.eip.work/displayName: kuboard
    k8s.eip.work/ingress: "false"
    k8s.eip.work/service: NodePort
    k8s.eip.work/workload: kuboard
  labels:
    k8s.eip.work/layer: monitor
    k8s.eip.work/name: kuboard
spec:
  replicas: 1
  selector:
    matchLabels:
      k8s.eip.work/layer: monitor
      k8s.eip.work/name: kuboard
  template:
    metadata:
      labels:
        k8s.eip.work/layer: monitor
        k8s.eip.work/name: kuboard
    spec:
      nodeName: k8s-worker1
      containers:
      - name: kuboard
        image: eipwork/kuboard:latest
        imagePullPolicy: IfNotPresent
      tolerations:
      - key: node-role.kubernetes.io/master
        effect: NoSchedule

---
apiVersion: v1
kind: Service
metadata:
  name: kuboard
  namespace: kube-system
spec:
  type: NodePort
  ports:
  - name: http
    port: 80
    targetPort: 80
    nodePort: 32567
  selector:
    k8s.eip.work/layer: monitor
    k8s.eip.work/name: kuboard

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kuboard-user
  namespace: kube-system

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kuboard-user
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: kuboard-user
  namespace: kube-system

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: kuboard-viewer
  namespace: kube-system

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kuboard-viewer
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: view
subjects:
- kind: ServiceAccount
  name: kuboard-viewer
  namespace: kube-system

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kuboard-viewer:kuboard-minimum-role
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: kuboard-minimum-role
subjects:
  - kind: ServiceAccount
    name: kuboard-viewer
    namespace: kube-system

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  name: kuboard-minimum-role
rules:
  - apiGroups:
    - ''
    resources:
    - 'namespaces'
    - 'nodes'
    verbs:
    - 'list'

修改nodeName的值为worker节点的主机名称，这里写为k8s-worker1

$ kubectl apply -f ~/k8s/start_kuboard.yaml
$ kubectl get pods -n kube-system

# 如查看的的宿主机端口为32567，所以可以访问http://192.168.222.201:32567
$ kubectl get svc -n kube-system

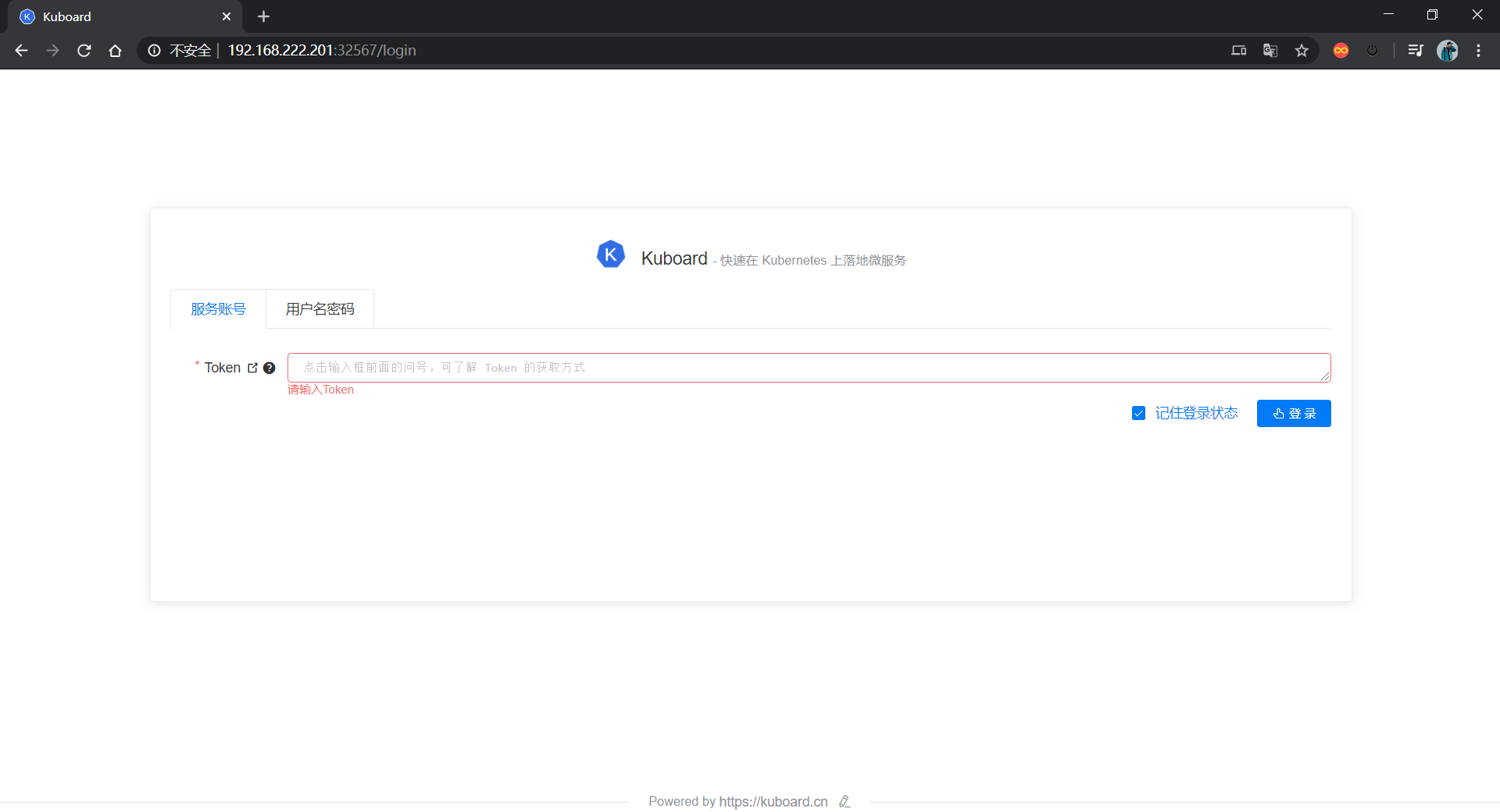

访问http://192.168.222.201:32567后出现如下页面，需要输入token。

需要到master执行如下命令获取token。

1	$ kubectl -n kube-system get secret $(kubectl -n kube-system get secret \| grep kuboard-user \| awk '{print $1}') -o go-template='{{.data.token}}' \| base64 -d

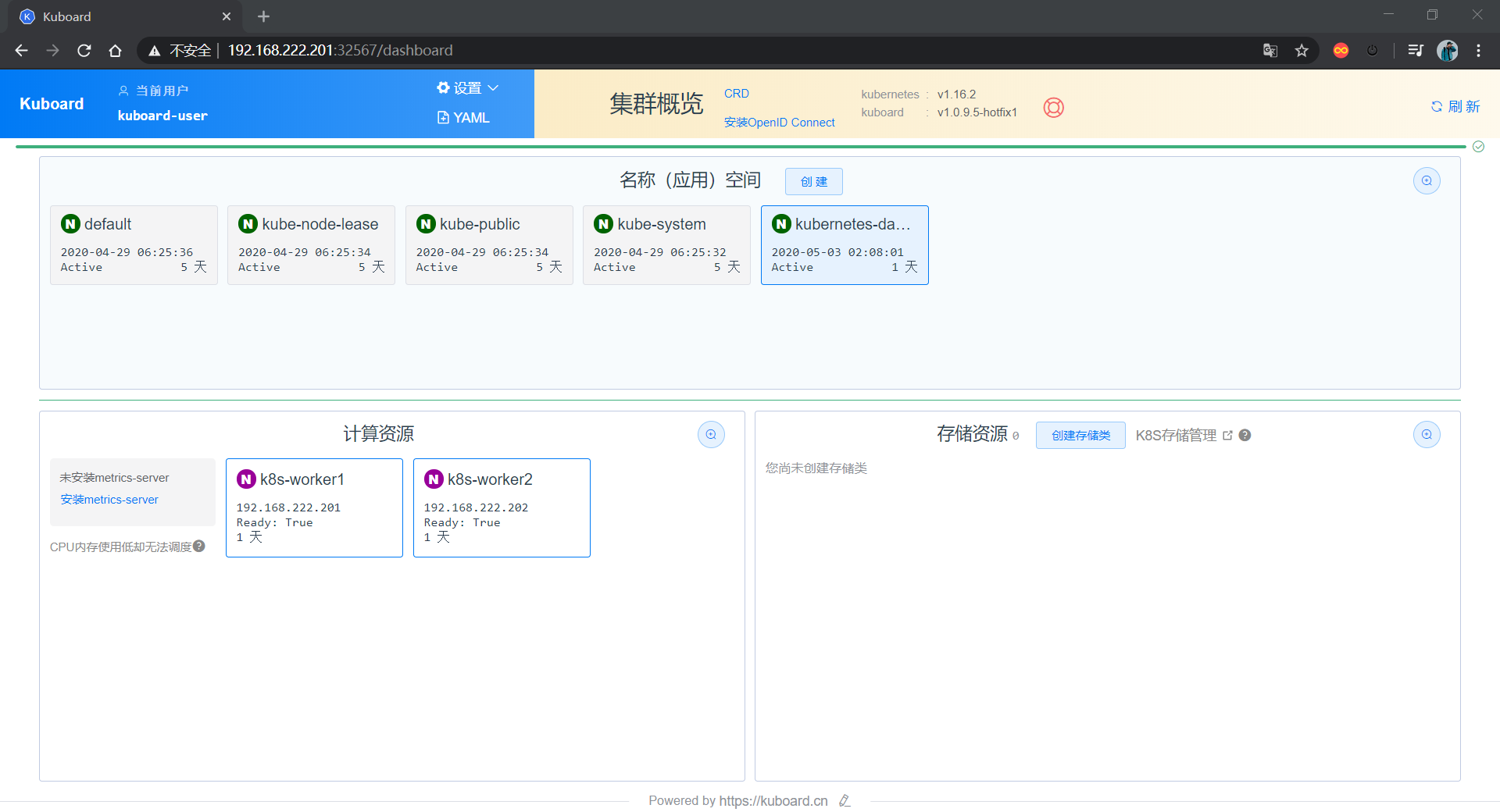

输入token并登录之后得到如下页面。

¶9. CoreDNS

CoreDNS 其实就是一个 DNS 服务，而 DNS 作为一种常见的服务发现手段，所以很多开源项目以及工程师都会使用 CoreDNS 为集群提供服务发现的功能。在k8s集群环境下，各个节点服务器的 IP 地址都可能会变动，那么就会需要频繁地修改配置，为了解决这个痛点，k8s利用了CoreDNS实现服务注册与发现。

在master节点如下操作：

1	$ vi ~/k8s/coredns.yaml

# Warning: This is a file generated from the base underscore template file: coredns.yaml.base

apiVersion: v1
kind: ServiceAccount
metadata:
  name: coredns
  namespace: kube-system
  labels:
      kubernetes.io/cluster-service: "true"
      addonmanager.kubernetes.io/mode: Reconcile
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
    addonmanager.kubernetes.io/mode: Reconcile
  name: system:coredns
rules:
- apiGroups:
  - ""
  resources:
  - endpoints
  - services
  - pods
  - namespaces
  verbs:
  - list
  - watch
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
    addonmanager.kubernetes.io/mode: EnsureExists
  name: system:coredns
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:coredns
subjects:
- kind: ServiceAccount
  name: coredns
  namespace: kube-system
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: coredns
  namespace: kube-system
  labels:
      addonmanager.kubernetes.io/mode: EnsureExists
data:
  Corefile: |
    .:53 {
        errors
        health
        kubernetes cluster.local in-addr.arpa ip6.arpa {
            pods insecure
            upstream
            fallthrough in-addr.arpa ip6.arpa
        }
        prometheus :9153
        proxy . /etc/resolv.conf
        cache 30
        loop
        reload
        loadbalance
    }
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: coredns
  namespace: kube-system
  labels:
    k8s-app: kube-dns
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/name: "CoreDNS"
spec:
  # replicas: not specified here:
  # 1. In order to make Addon Manager do not reconcile this replicas parameter.
  # 2. Default is 1.
  # 3. Will be tuned in real time if DNS horizontal auto-scaling is turned on.
  strategy:
    type: RollingUpdate
    rollingUpdate:
      maxUnavailable: 1
  selector:
    matchLabels:
      k8s-app: kube-dns
  template:
    metadata:
      labels:
        k8s-app: kube-dns
      annotations:
        seccomp.security.alpha.kubernetes.io/pod: 'docker/default'
    spec:
      serviceAccountName: coredns
      tolerations:
        - key: node-role.kubernetes.io/master
          effect: NoSchedule
        - key: "CriticalAddonsOnly"
          operator: "Exists"
      containers:
      - name: coredns
        image: lizhenliang/coredns:1.2.2
        imagePullPolicy: IfNotPresent
        resources:
          limits:
            memory: 170Mi
          requests:
            cpu: 100m
            memory: 70Mi
        args: [ "-conf", "/etc/coredns/Corefile" ]
        volumeMounts:
        - name: config-volume
          mountPath: /etc/coredns
          readOnly: true
        ports:
        - containerPort: 53
          name: dns
          protocol: UDP
        - containerPort: 53
          name: dns-tcp
          protocol: TCP
        - containerPort: 9153
          name: metrics
          protocol: TCP
        livenessProbe:
          httpGet:
            path: /health
            port: 8080
            scheme: HTTP
          initialDelaySeconds: 60
          timeoutSeconds: 5
          successThreshold: 1
          failureThreshold: 5
        securityContext:
          allowPrivilegeEscalation: false
          capabilities:
            add:
            - NET_BIND_SERVICE
            drop:
            - all
          readOnlyRootFilesystem: true
      dnsPolicy: Default
      volumes:
        - name: config-volume
          configMap:
            name: coredns
            items:
            - key: Corefile
              path: Corefile
---
apiVersion: v1
kind: Service
metadata:
  name: kube-dns
  namespace: kube-system
  annotations:
    prometheus.io/port: "9153"
    prometheus.io/scrape: "true"
  labels:
    k8s-app: kube-dns
    kubernetes.io/cluster-service: "true"
    addonmanager.kubernetes.io/mode: Reconcile
    kubernetes.io/name: "CoreDNS"
spec:
  selector:
    k8s-app: kube-dns
  clusterIP: 10.0.0.2
  ports:
  - name: dns
    port: 53
    protocol: UDP
  - name: dns-tcp
    port: 53
    protocol: TCP

1 2	$ kubectl apply -f ~/k8s/coredns.yaml $ kubectl get pods -n kube-system \| grep coredns
